ASBFW1

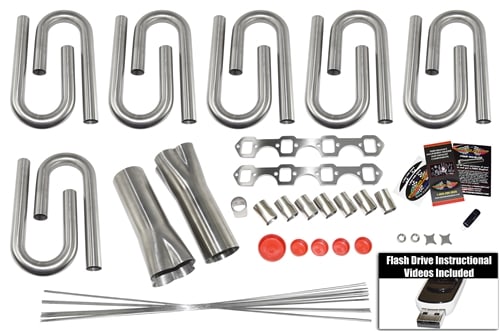

Small Block Ford Header Build Kit

Small Block Ford Windsor Header Build Kit

$

Product Code: RM-3530-NA-HBK
Choose your options:
Material Type:
Collector Design:
Primary Tube Size:

Pro Series Header Build Kits: Small Block Ford-Windsor

This header build kit has everything you need to bring that small block Ford Windsor custom header together. See why Stainless Headers Mfg., Inc has the most complete header builder kit on the market. (HP recommendations at the bottom of this page)

What makes our header build kits the choice of top fabricators?
  • Flanges – Included are 2 American made precision laser cut 3/8” thick header flanges for the small Block Ford Windsor head with 2" center to center bolt pattern.
  • Flange Stubs – Included with our SBF Windsor header kit are (8) formed stubs to help speed up your fabrication process. These flange stubs are formed to the exact flange shape and come in 1 5/8” or 1 ¾” primary tube sizes.
  • Mandrel Bends - We supply (12) 180 degree J bends. Our J bends come with a 6” & a 12” leg. For most header builds, this extra leg length mean you won’t need to buy any straight tubing. What makes our stainless mandrel bends truly a unique product? We start off with an American made 304 stainless raw material, that is then bent in the U.S. for a genuine 304 .065 stainless bend. Our material forms better, welds better and last because it is a genuine 304 stainless.
  • 4 Into 1 Collectors - From there we supply a precision formed 4 into 1 collector or a set of our optional super high flow slip on merge collectors with 4 sets of collector tabs. Just like our stainless bends, we start off with an American made 304 stainless and fabricate the industries finest collectors.
We offer these header kits with 3 different collector options
Formed weld on collectors
(Collector stars included)

Slip on merge collectors
with a straight exit
Slip on Merge Collectors with Collector Tabs
Slip on merge collectors
with a transitional exit
Transitional Exit Slip on Merge Collectors with Collector Tabs
6 Part Video Series:
How To Build Your Own Headers



  • Collector stars – A simple part that really helps speed up the fab process. Used as a weld in block off between the 4 tubes before welding the collector on, there are precision laser cut for a perfect fit between your specific primary tubes.
  • Purge Caps – This simple, but effective method for back purging caps works great. Each kit includes 4 primary caps and one collector cap.
  • O2 bungs – Each header builder kit includes 2 weld on O2 bungs. Precision machined in the U.S. from 304 stainless billet, these bungs weld beautifully, not like a cast bung
  • Tig Filler Rod -Includes ¼ lbs. package of filler rod
Be sure to check out our Facebook, Instagram, and YouTube channels for continuous updates on customer projects, as well as how-to videos and information about our extensive product lineup.


Because of the wide variety of engine chassis configurations these HP numbers are for general reference only.


1 5/8” Primary Tube Header Kit:375 to 450 Horse power

1 3/4” Primary Tube Header Kit:425 to 500 Horse Power

Add A Transitional Merge Collector For That Extra Performance Edge

Do you have an out-of-round port on your flanges, but are unsure of how to get your header tubing to fit? Check out the video below for our flange kits. Many of our flanges are now available with stubs formed and welded in for you, saving you time and energy on your next header build. Check out our flange kit page for all available options.



Reference Number: #40035/#40035-134
Small Block Ford Header Builder Kit
Our Pro Series header build kits come with everything you need to build a custom set of headers
