Big Block Chevy Square Port Custom Fender Exit Header Build Kit

0 Reviews
$0.00
This product qualifies for FREE SHIPPING!
Product Code: RM-2520-FE-HBK
Choose your options:
Material Type:
Collector Design:
Fender Exit Primary Tube Size:
Bullhorn Bends:
Bullhorn Trim Rings:
Formed Collector Upgrades:
V-Band Assembly:

Fender Exit Header Build Kits: Big Block Chevy Sq. Port

  • This header build kit has everything you need to bring that Fender Exit big block Chevy custom header together. Designed to fit the standard bore space, conventional head Square port big block Chevy heads. Great for building that set of fender exit headers for any pulling truck, racing, or performance application. See why Stainless Headers Mfg., Inc has the most complete fender exit header builder kit on the market for building your own custom headers.

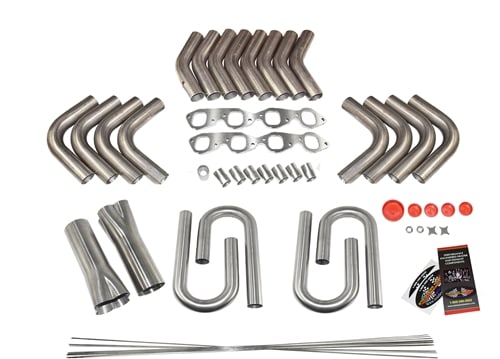

    Included are:

    • (2) Flanges: 2 American made precision laser cut 3/8” thick header flanges to fit the Big Block Chevy square port heads.
    • (8) Preformed Header Flange Stubs: Matched to your primary tube size selection, and formed to the non-round shape of the header flange, drastically reducing headaches and build time
    • (20) Mandrel Bends: We start off with an American made 304 stainless raw material, that is then bent in the U.S. for a genuine 304 .065 stainless bend. Our material forms better, welds better and last because it is a genuine 304 stainless.
    • (4) Stainless Mandrel J Bends (6" and 12" staggered leg lengths)
    • (8) 90 Degree Mandrel bends (6" leg lengths)
    • (8) 45 Degree Mandrel bends (6" leg lengths)
    • (2) 4 into 1 Collectors: From there we supply a precision formed 4 into 1 collector or a set of our optional super high flow slip on merge collectors with 4 sets of collector tabs. Just like our stainless bends, we start off with an American made 304 stainless and fabricate the industries finest collectors . We offer these header kits with 3 different collector options:
    • Formed weld on collectors (Collector stars included)
    • Slip on merge collectors with a straight exit (Collector tabs included)
    • Slip on merge collectors with a transitional exit(Collector tabs included)
    • (2) Collector stars: A simple part that really helps speed up the fab process. Used as a weld in block off between the 4 tubes before welding the collector on, these are precision laser cut for a perfect fit between your specific primary tubes.
    • (5) Purge Caps: This simple, but effective method for back purging caps works great. Each kit includes 4 primary caps and one collector cap.
    • (2) O2 bungs: Each header builder kit includes 2 weld on O2 bungs. Precision machined in the U.S. from 304 stainless billet, these bungs weld beautifully, not like a cast bung
    • (1/4 lb) Tig Filler Rod: Includes ¼ lbs. package of filler rod
